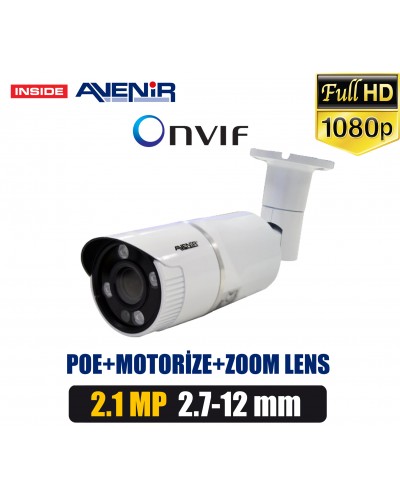

MODEL AV-6060P

System Framework    Embedded Linux system and ARM9 Framework

Sensor    2.1MP SONY CMOS Sensor

Lens    2.7mm-12mm Motorize zoom lens
Video Processing    H.264 Video Code, dual-stream,32k-8m 1-30/s
Video Output    Main stream: 1920*1080@1080P
Audio Prot    Deputy stream:704*576
Audio Processing    G.711 coding,Support bothway Voice intercom
Network Port    10M/100M self-adaption
Network Protocol    TCP/UDP/HTTP/MULTICAST/UPnP/NTP/RTSP/Onvif
IR Led    4 Array LED
IR_CUT    Fixed pitch: 20mm; control pulse: 500ms, 5V
USB    Support
TF    Support
CVBS Video Output    Support
Alarm input    Support
Standard protocol    Onvif 2.0
Mobile Phone Monitor    Support Iphone, Windows Mobile, Android
Power Supply    DC9V~12V, <3W
Working    -35c +65c
Ingress Protection    ESD lkv
Demension    38mm*38mm
